高清晰度电视系统测试卡

简介

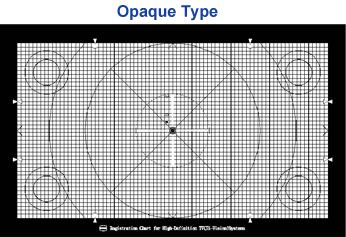

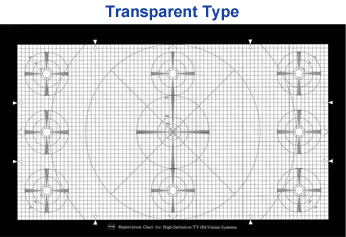

高清晰度电视系统测试卡用于电视系统需要的高精度定位测试以及HDTV需要的高分辨率测量。

测试卡由水平和垂直间距为h/45的直线和直径为√2h, h, 5h/12, 以及 h/4的圆组成包含400TV到1600TV的条纹。

尺寸

This Test Chart is used for registration of TV systems which needs high-accuracy registration and high resolution needed by HDTV.

Horizontal and vertical spacing in line is h/45 and the diameters of the circles are √2h, h, 5h/12, and h/4 in the chart which consists of 400TV to 1600TV of fringes.

Sizes of effective area and outer shape of refection test chart are indicated in below table.
